Conveyor Belts
Pipe conveyor belts are used for enclosed material transport. The belt is rolled into a pipe shape containing materials inside with a limited environment impact during operation. It is capable of negotiating steep inclines as well as tighter curves.
Product Series
■ Normal Abrasion-resistant Pipe Conveyor Belt
■ Oil-resistant Pipe Conveyor Belt
■ Flame-retardant Pipe Conveyor Belt
■ Acid & Alkali-resistant Pipe Conveyor Belt
■ Heat-resistant Pipe Conveyor Belt
■ Low Rolling-resistant Pipe Conveyor Belt
Features
■ High-tensile steel cords or textile carcass
■ Full range of cover grades with excellent dynamic properties
■ Sufficient cross rigidity to maintain pipe cross-section
■ Reinforcement with higher lengthwise elasticity for installation with tight curves
■ Unique carcass design with tailored rigidity, more flexible at belt edges to ensure tight overlapping
■ Pipe diameter φ150mm to φ600mm
Applications

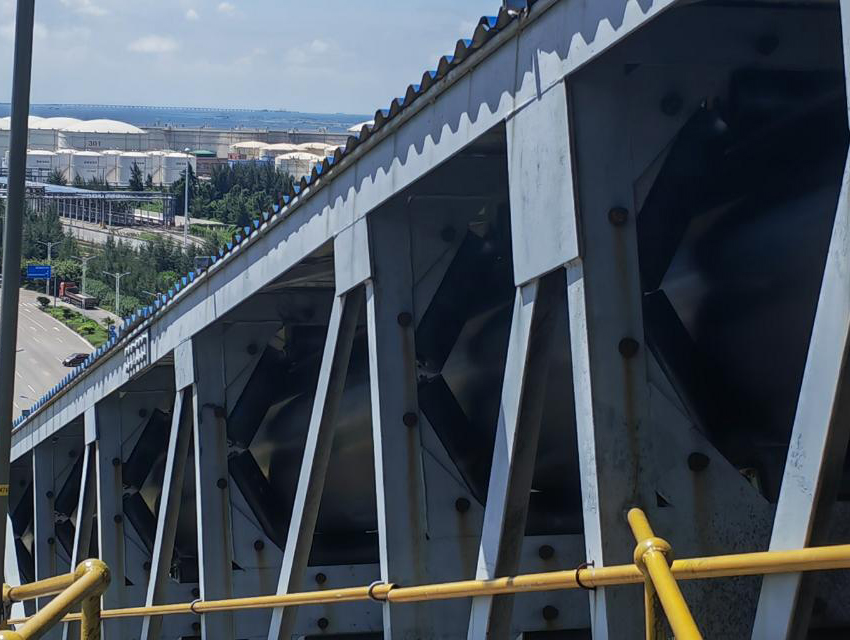

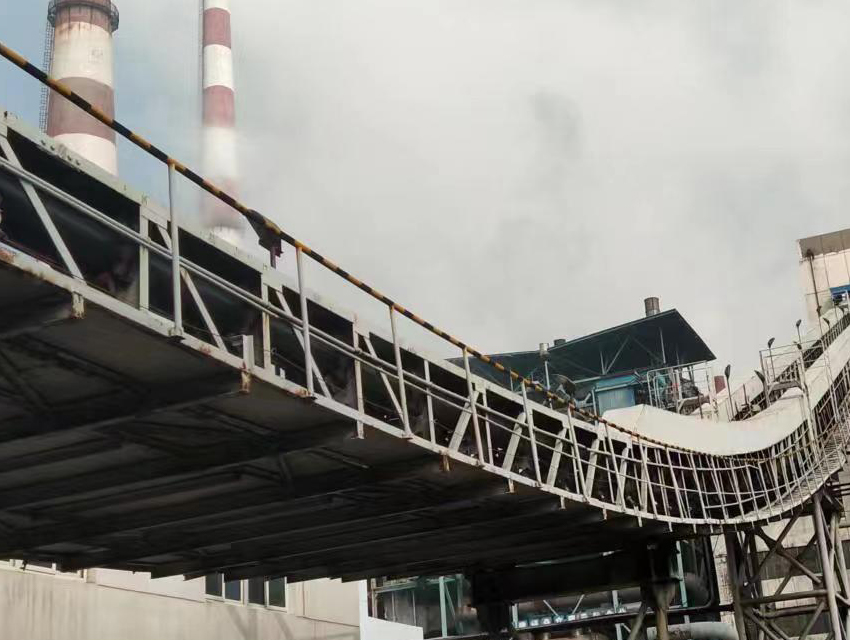

Pipe conveyor belts are widely used in the mining, power, metallurgy, building material and grain industries where environment protection needs to be considered on the job site.

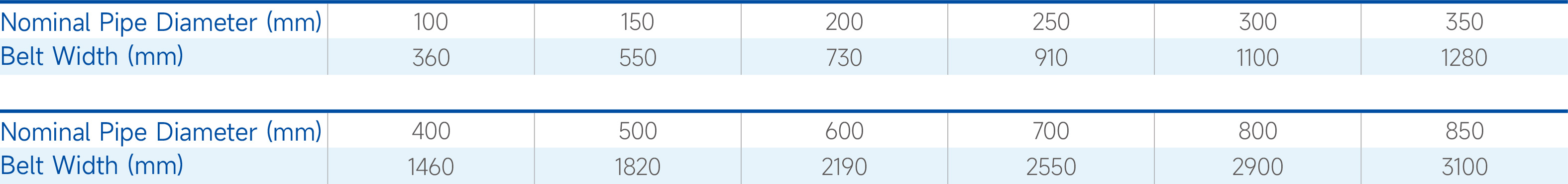

Multi-ply Fabric Pipe Conveyor Belt
Specification

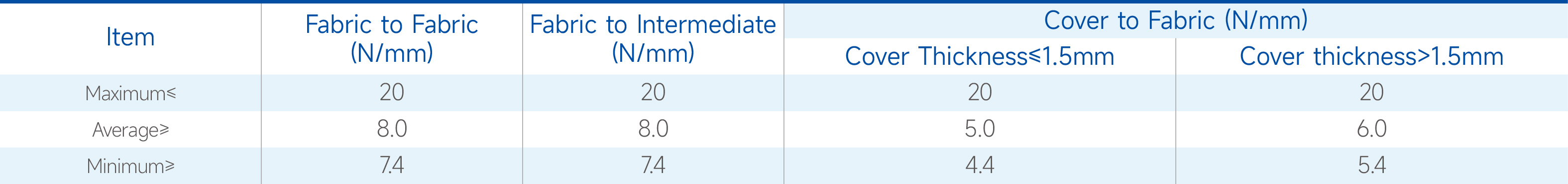

Adhesion Strength of Abrasion-resistant Belt (Type D) and Scratch-resistant Blet (Type H)

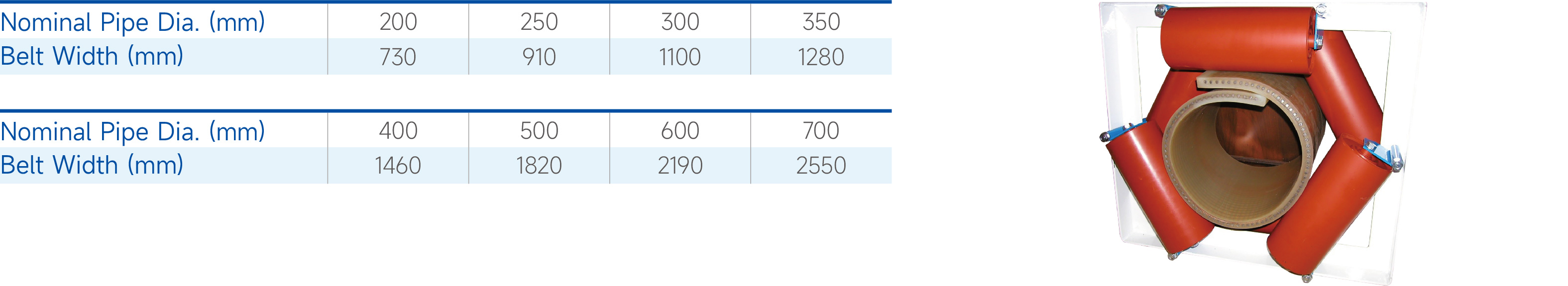

Steel Cord Pipe Conveyor Belt
Specification

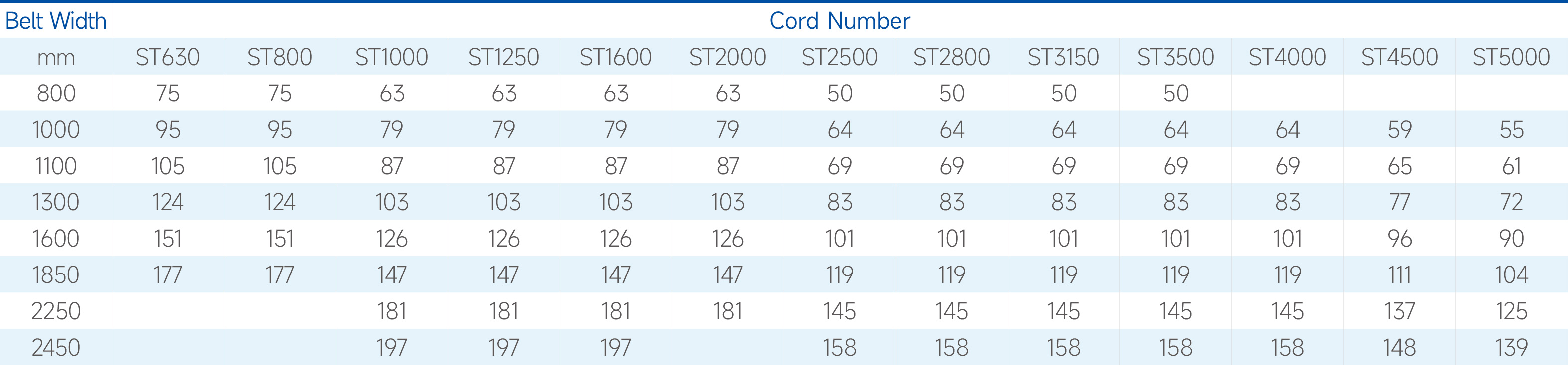

Technical Parameters
