Conveyor Belts

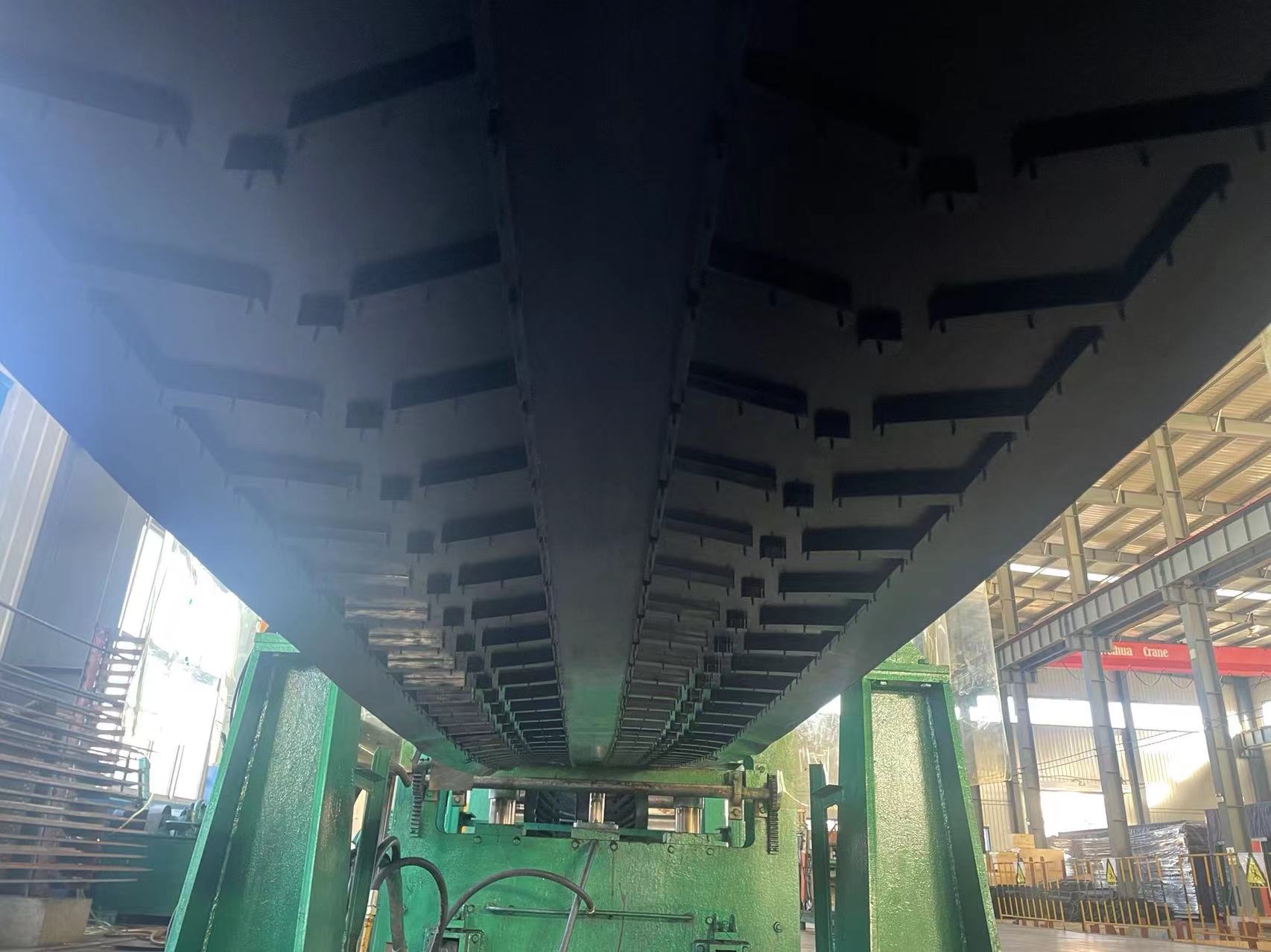

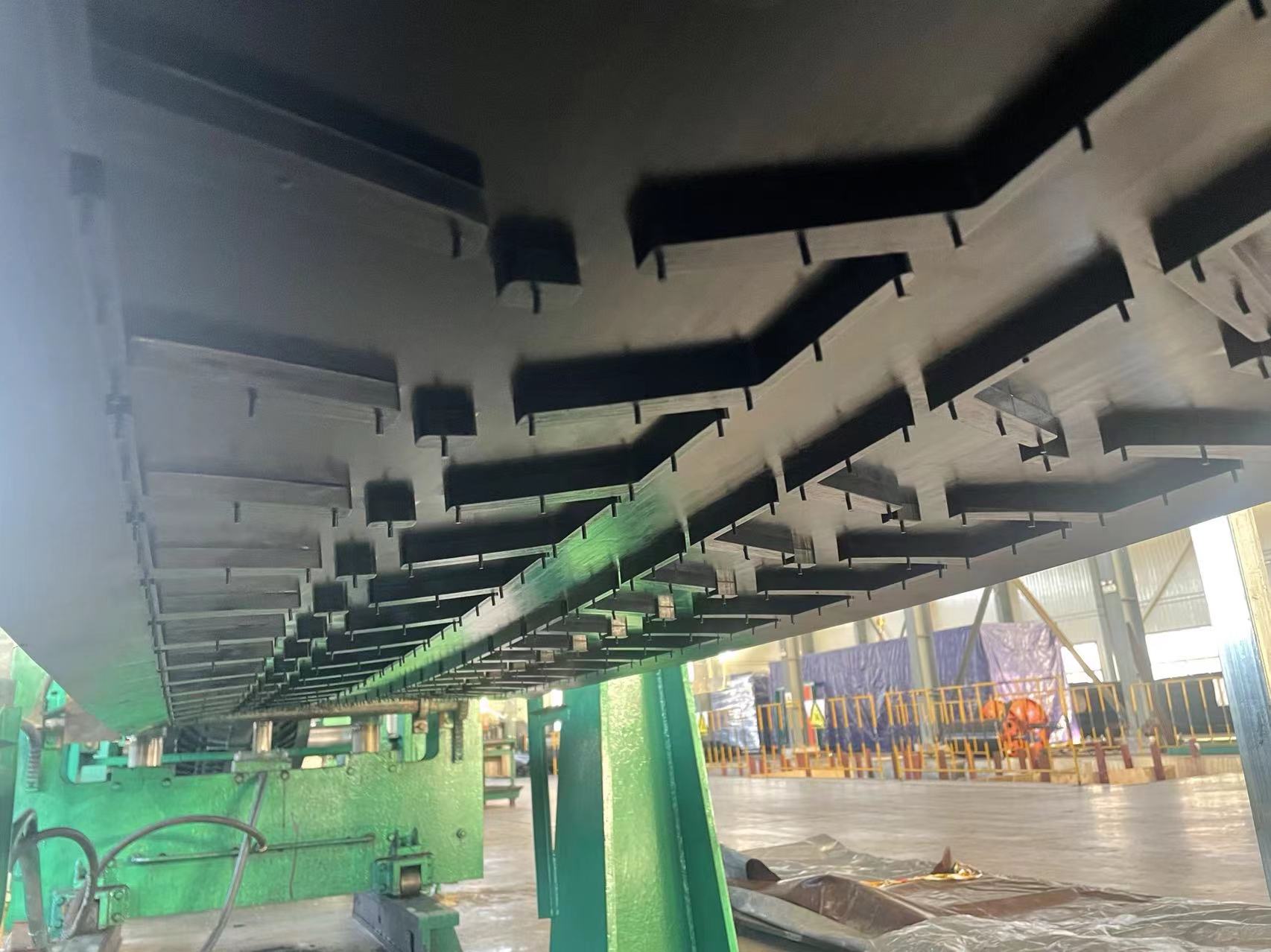

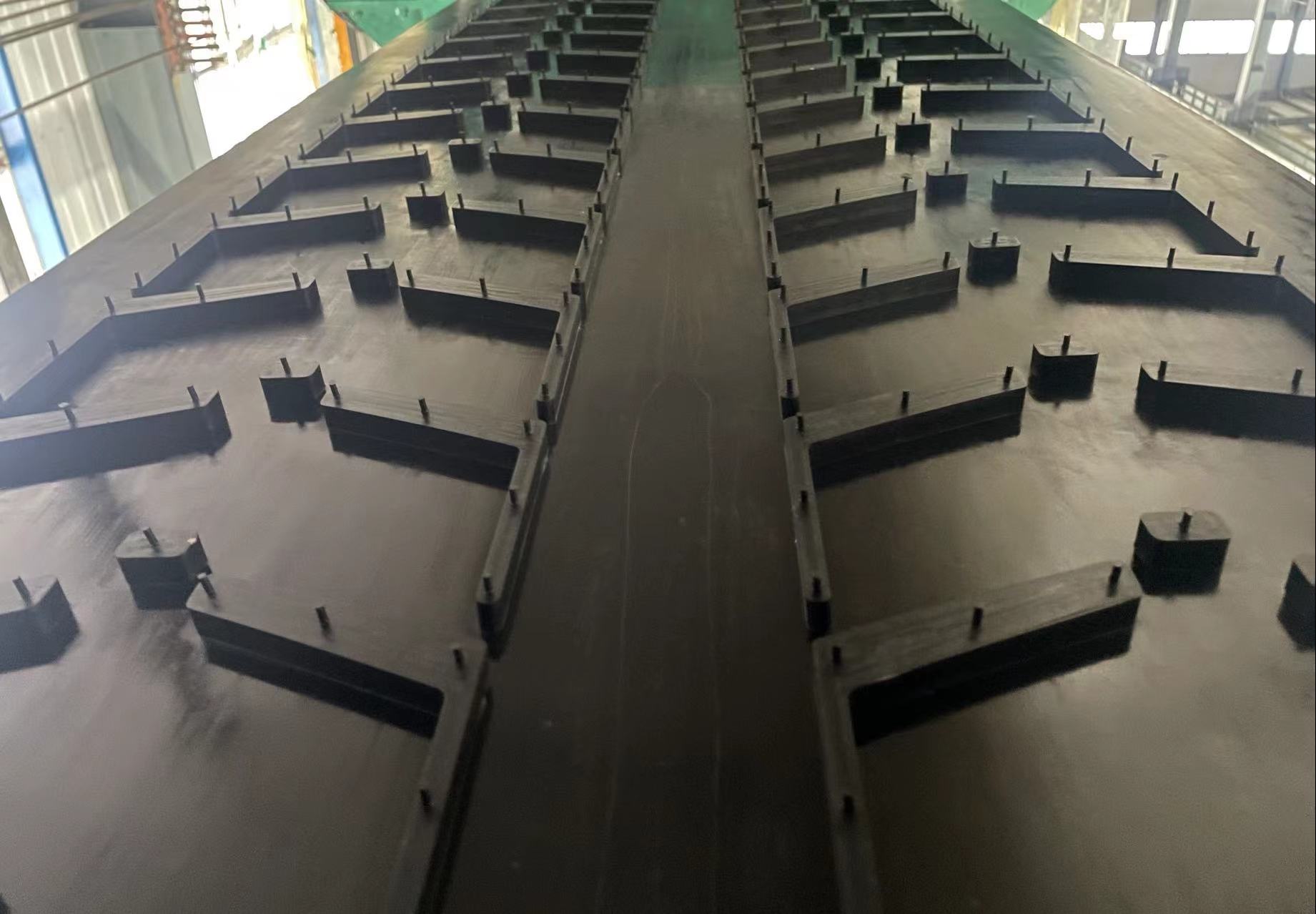

Chevron belts are designed with cleated surface which can hold the loose materials in place preventing rollback and spillage in inclined applications. The height of the profile can ranges from 5mm to 32mmdemanded by different working conditions.
Rubber Quality
■ Flame-retardant
■ Abrasion-resistant
■ Acid & Alkali-resistant
■ Heat-resistant
■ Oil-resistant
Capability

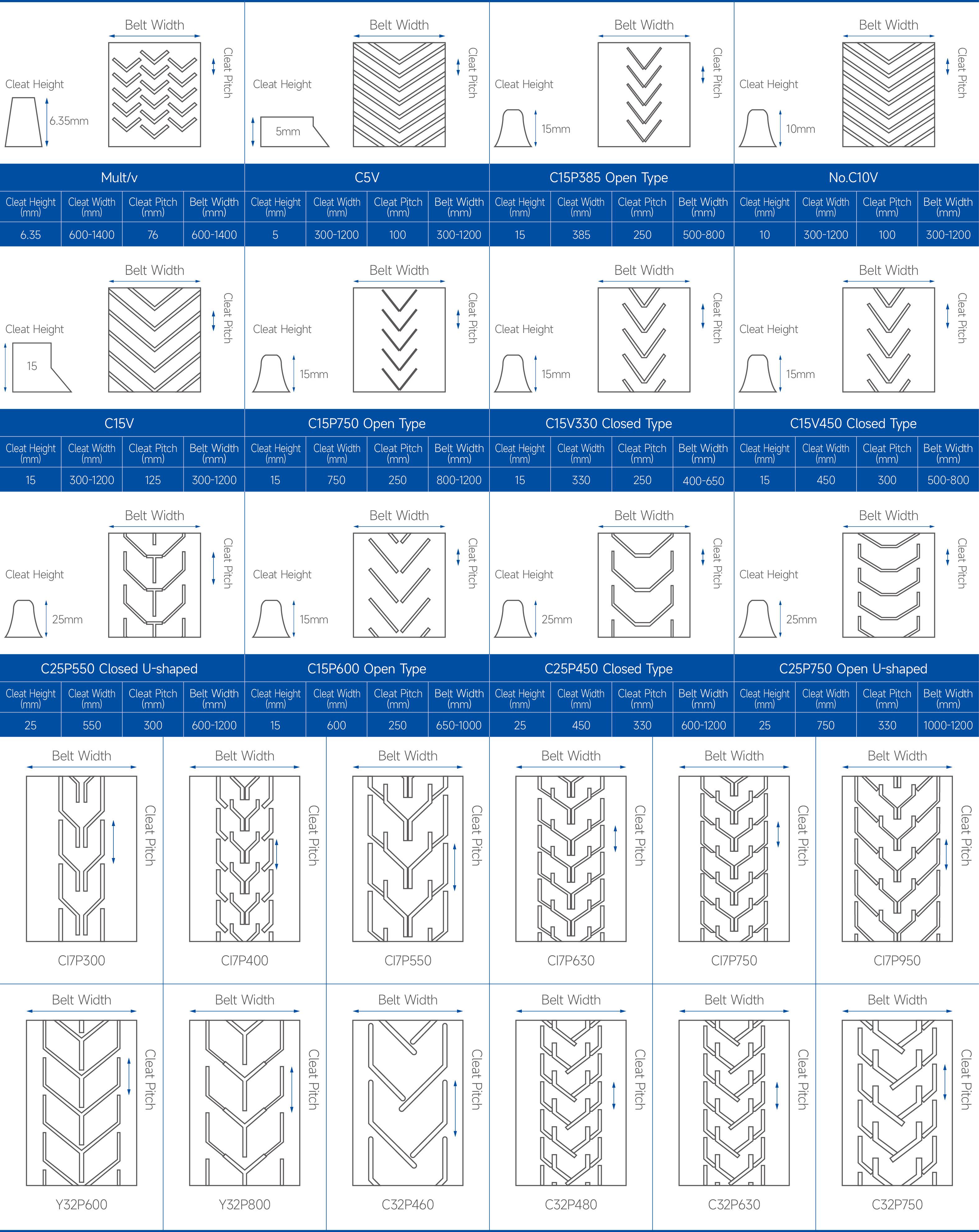

■ Cleat Height: 5mm, 8mm, 10mm, 15mm, 17mm, 20mm, 25mm, 32mm
■ Belt Width: 300~2000mm
Features
■ Cleats are integrally vulcanized on the belt with high adhesion to prevent coming off.
■ Various pattern designs are available to meet conveying inclination angle up to 45°.
■ High flexibility and high abrasion resistance design ensures excellent performance and longer service life.
Applications
Our Chevron belts are designed for sand and gravel, crushed rock, wood chip, coal and iron, bagged material, grains, road construction, waste management and barge and railroad car unloading.
